From four pencil sketches to the ultimate off-road motorsport transporter.
Four hand-drawn sketches. One ambitious vision. A completely bespoke truck and trailer combination engineered and built from the ground up by ALDOM.
When Swinglehurst Motorsport approached ALDOM, they weren't looking for an off-the-shelf race transporter

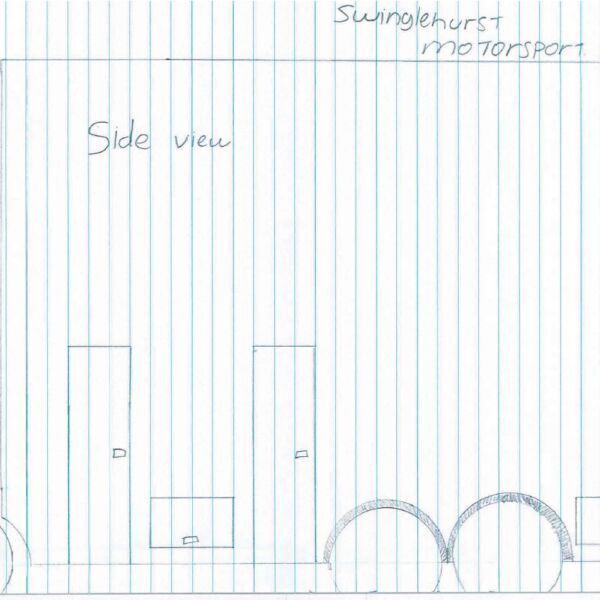

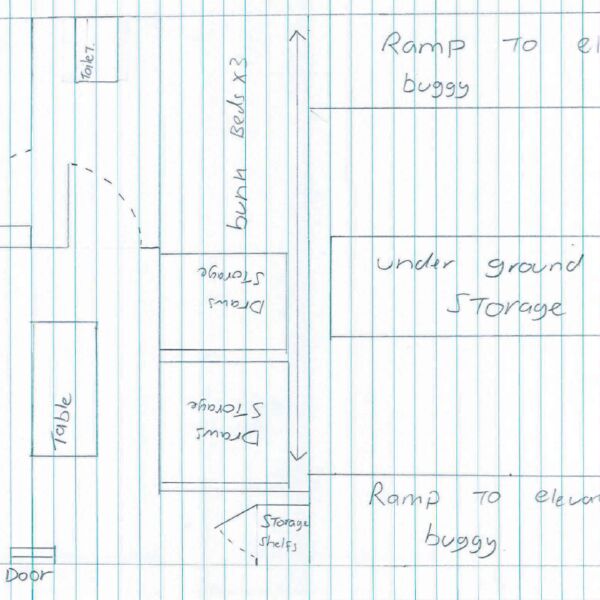

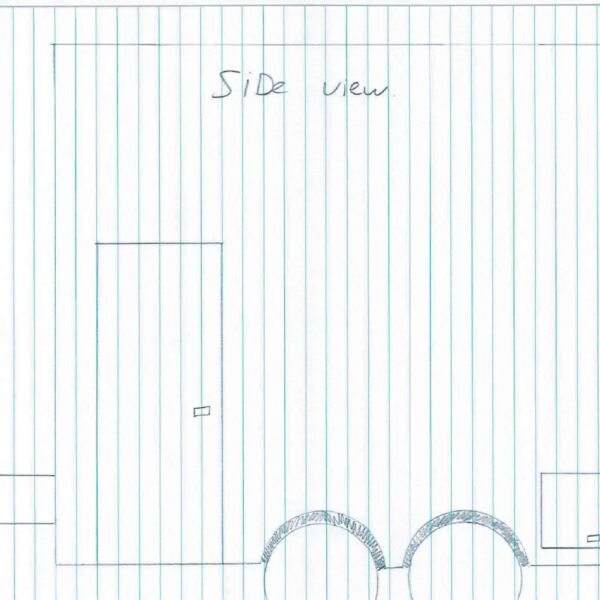

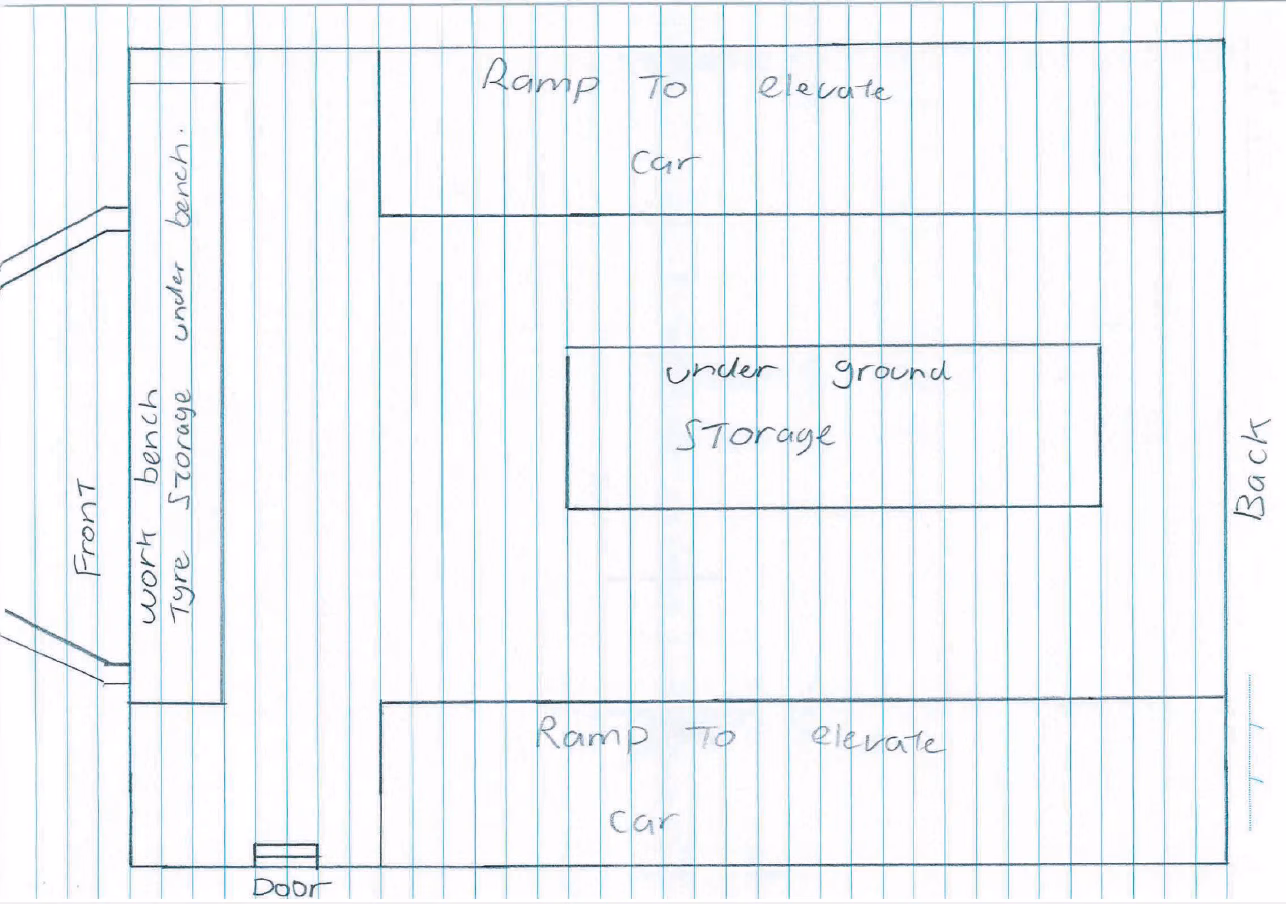

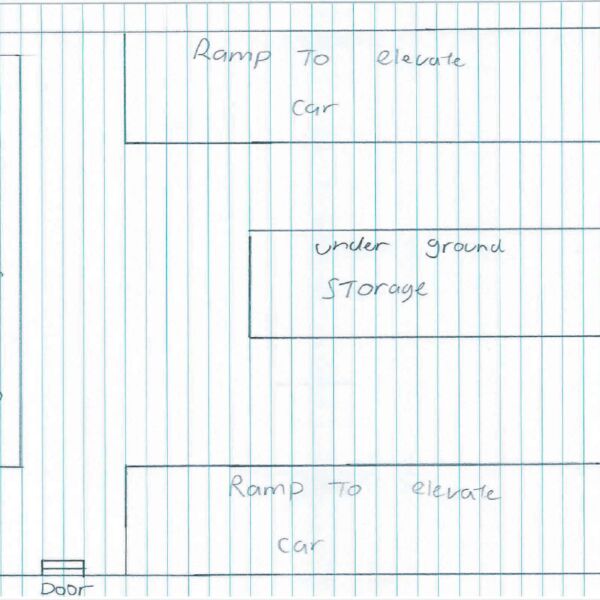

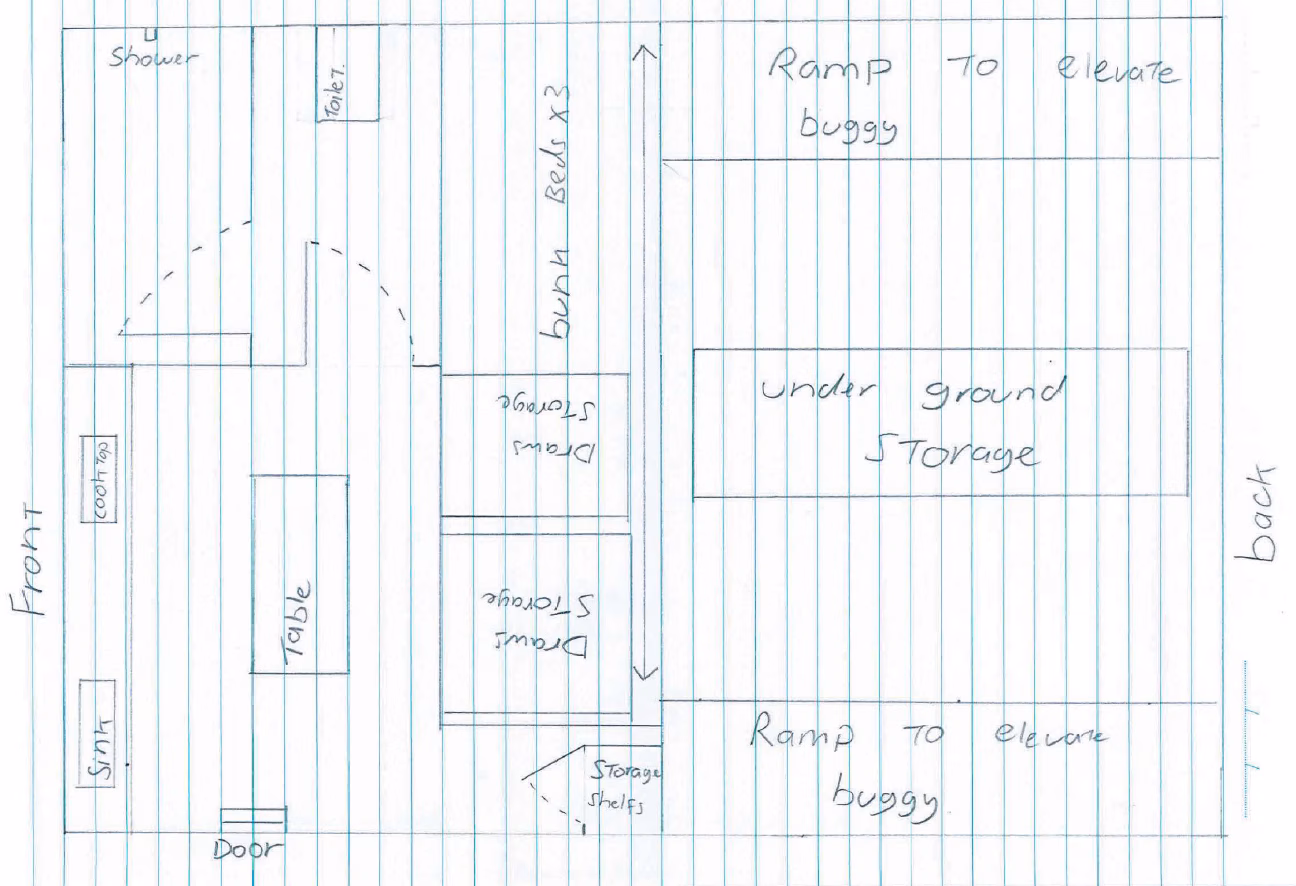

The starting point? Four pencil sketches drawn on A4 paper. There was no existing template to follow. ALDOM had to engineer the solution.
Turning an idea into something buildable

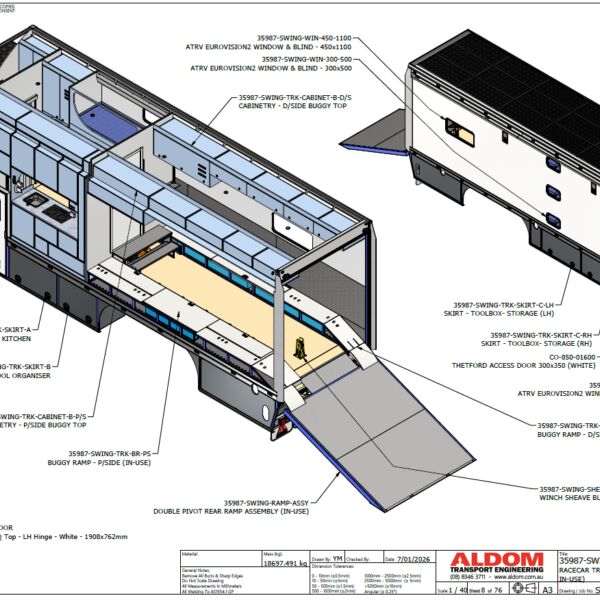

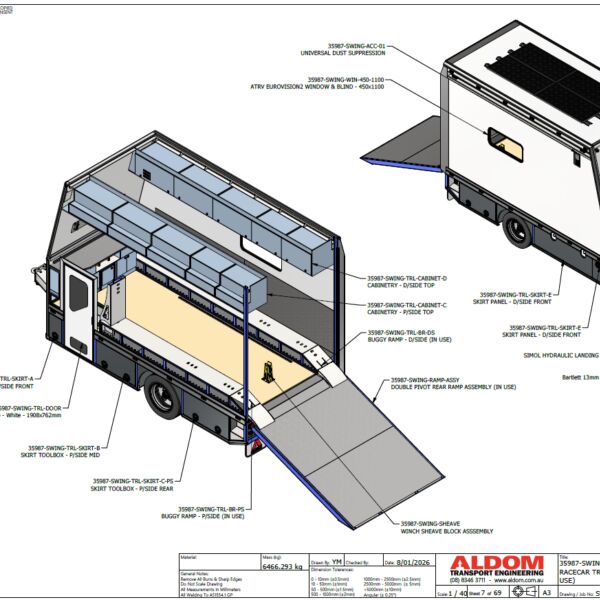

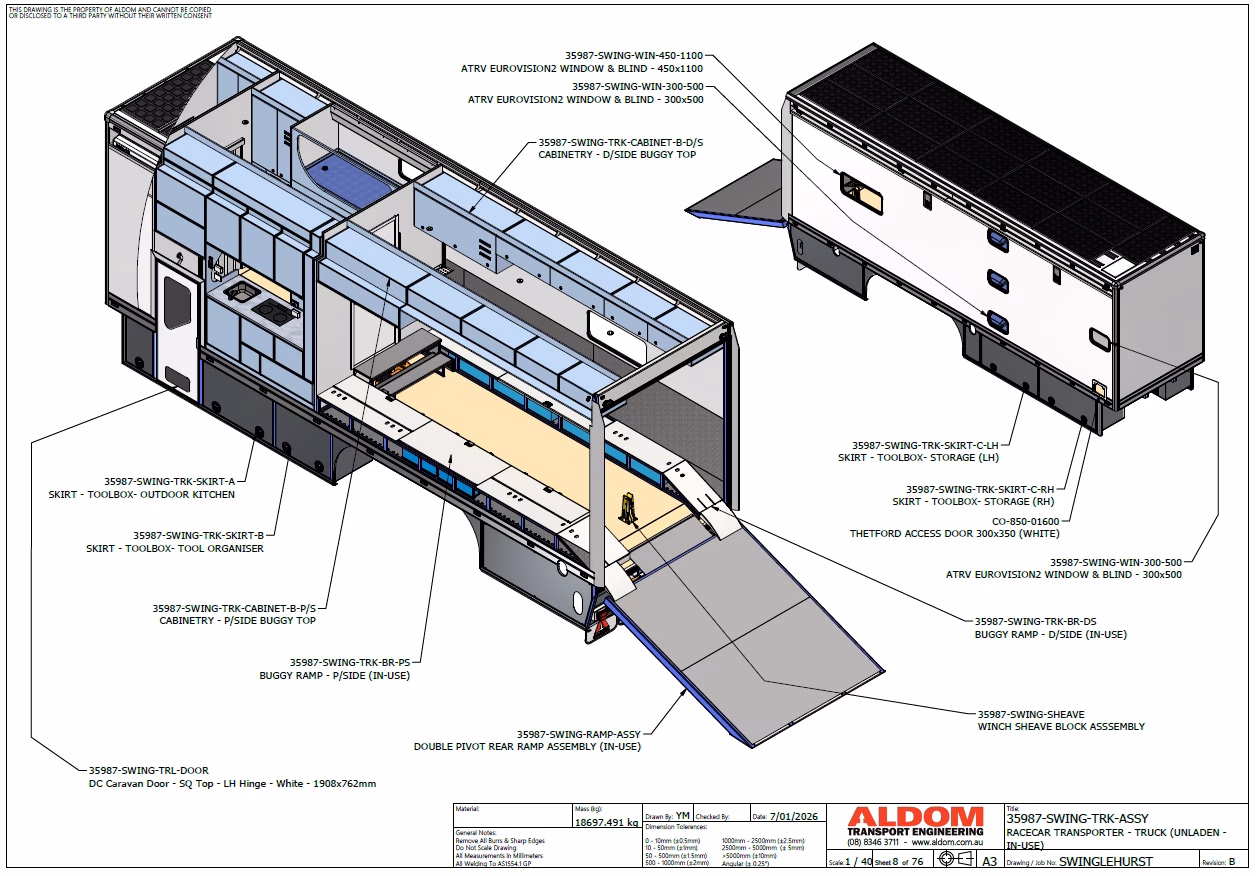

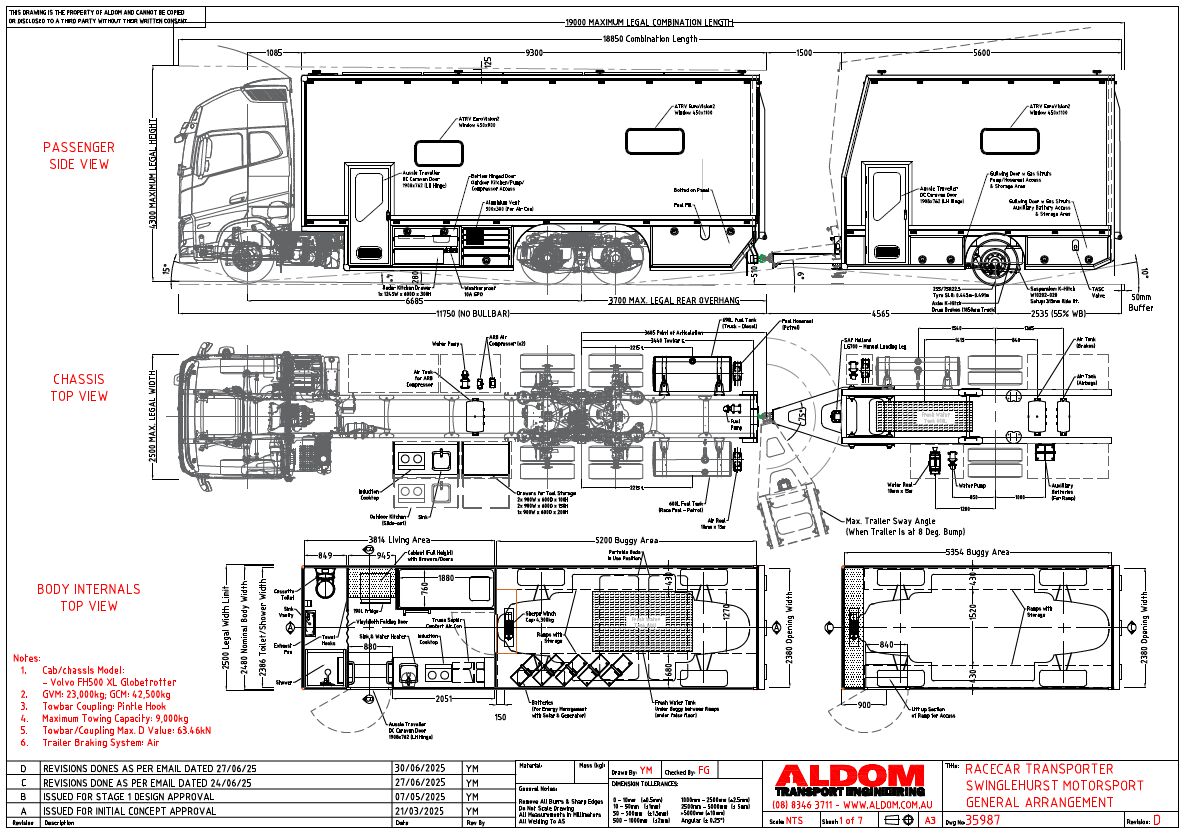

The customer's original pencil sketches were translated into detailed General Arrangement drawings. From there, the project progressed into comprehensive Stage 2 engineering, including full 3D CAD modelling, structural frame analysis and chassis and subframe engineering.
ALDOM's engineers remained closely involved throughout manufacturing, working directly with our tradespeople to solve fitment and fabrication challenges as the build came to life.
Transport. Live. Work. Race. Anywhere.

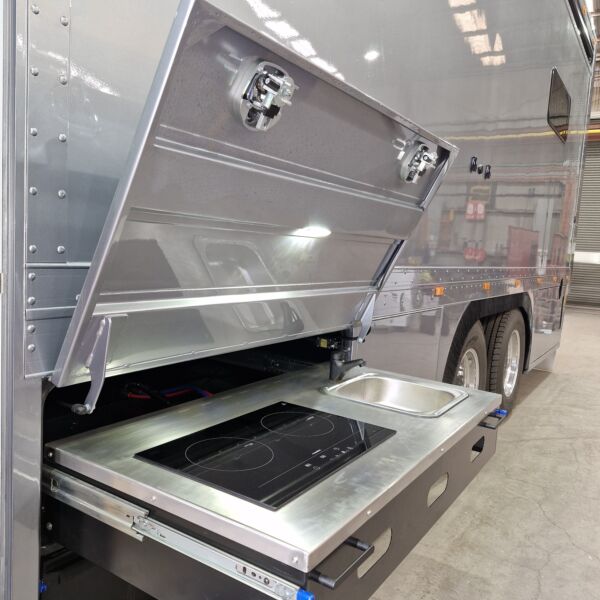

The Swinglehurst team needed to be able to arrive at remote race events with virtually everything required to operate independently – race vehicle transport, fully equipped living quarters, bathroom and shower facilities, mobile workshop capability, extensive tool and equipment storage, race vehicle refuelling, high-capacity water storage and wash-down, and hydraulic vehicle loading, solar generation and independent off-grid power, all within one fully integrated truck and trailer combination.
Engineered to get the cars in - and get them racing

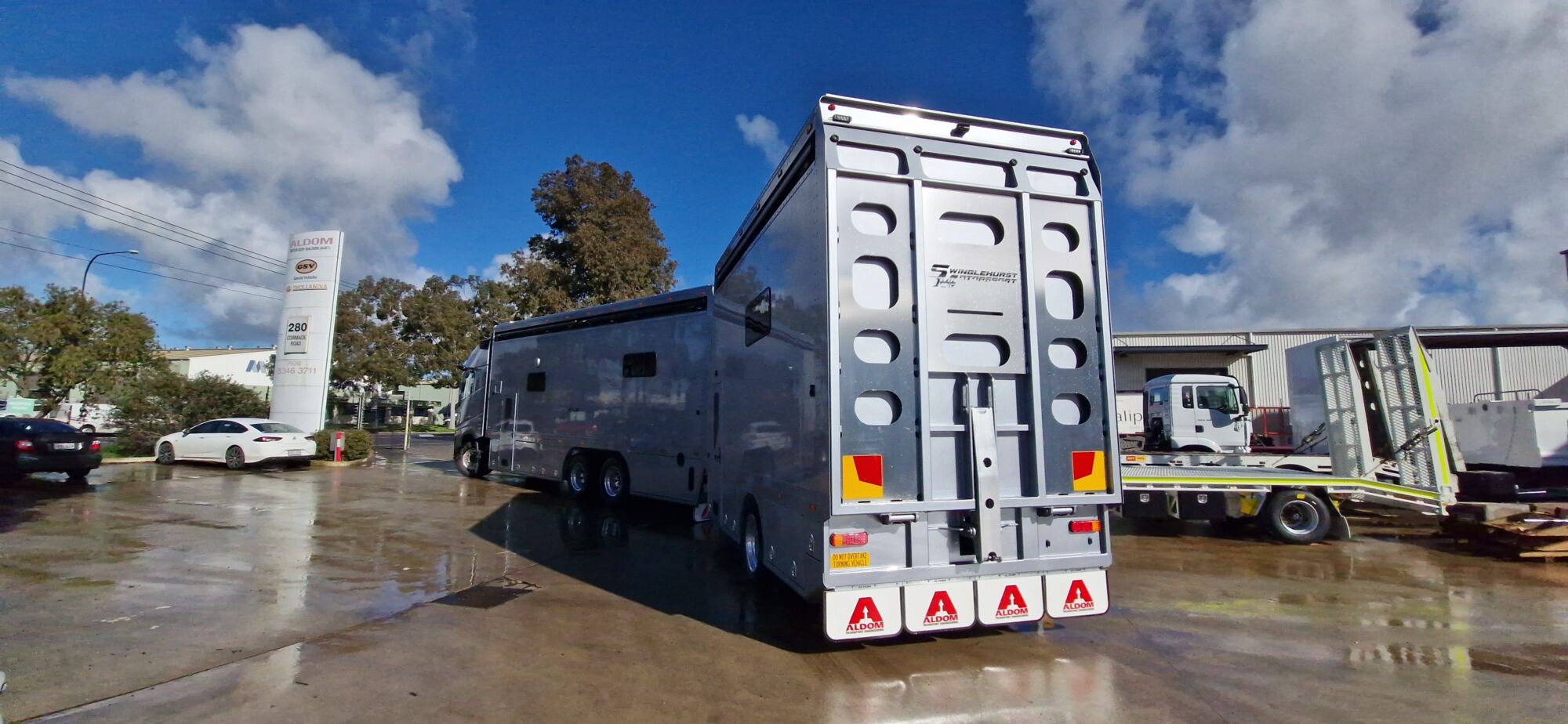

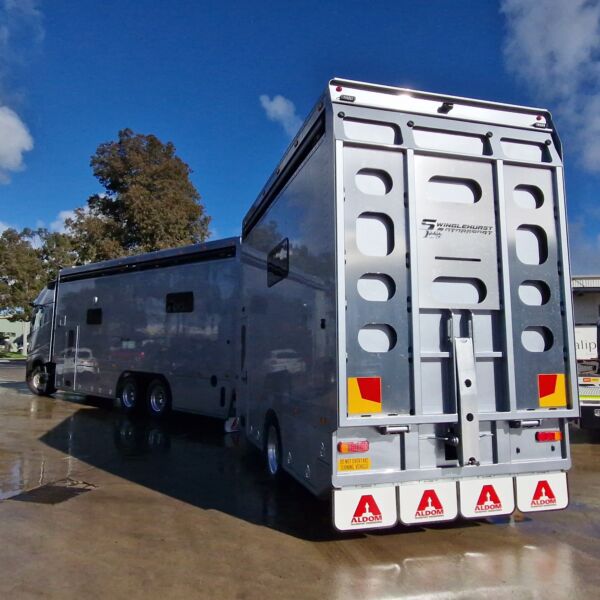

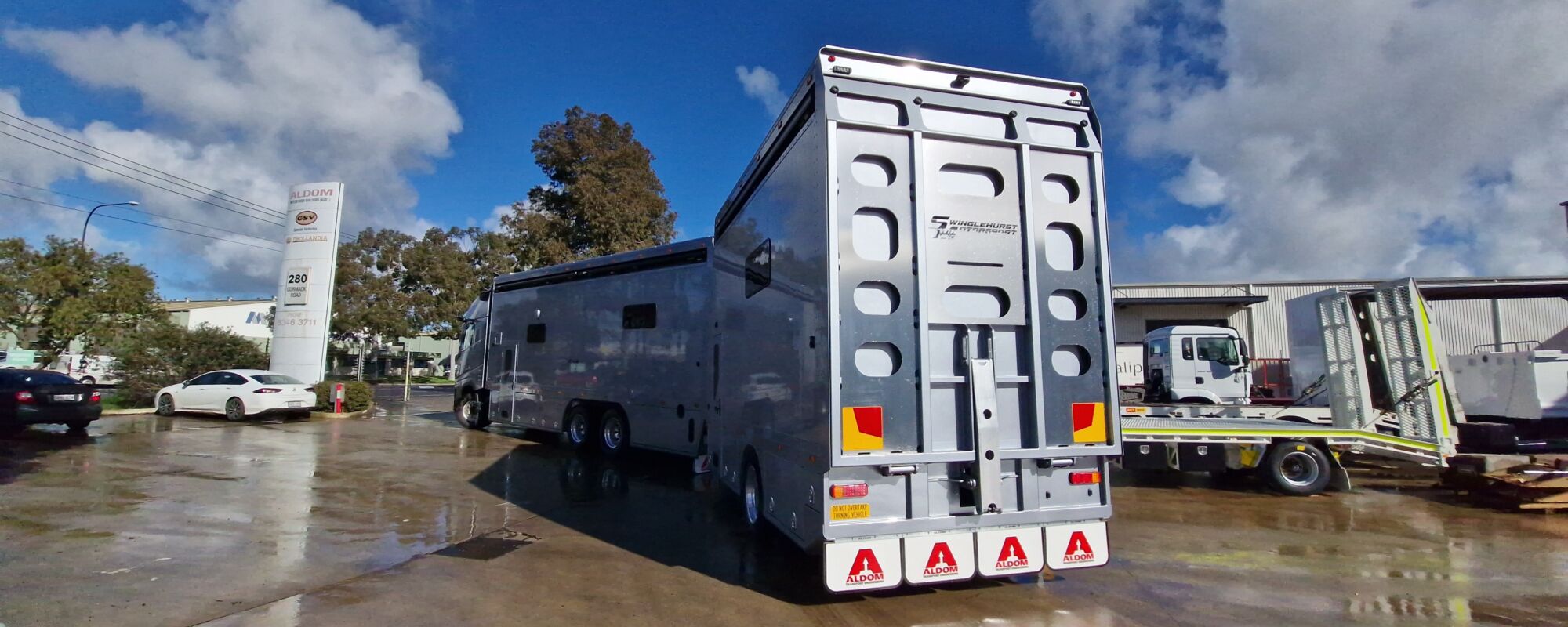

A standout feature of the entire project is ALDOM's concealed double-pivot hydraulic rear ramp. When closed, the entire system folds neatly into the rear of the body, creating a clean, flush and weather-sealed profile.
Complex engineering – hidden behind a remarkably clean finish.
Clever engineering throughout

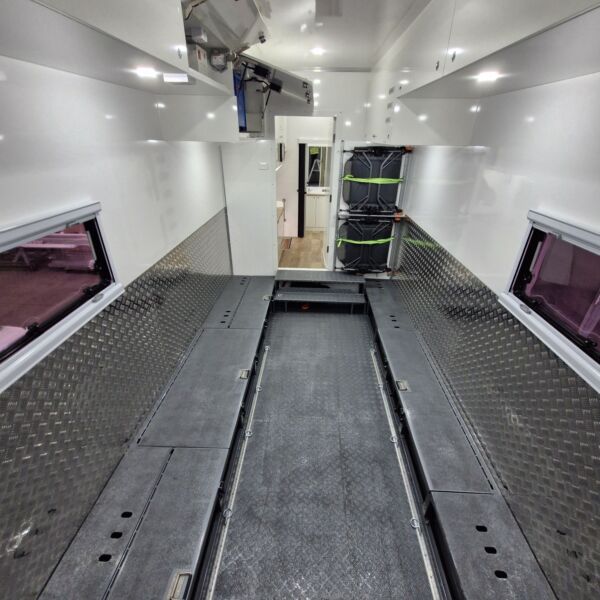

Raised internal ramps were required to provide clearance beneath the race vehicles, but they also consumed valuable internal volume. Instead of losing that space, ALDOM redesigned the ramp structures themselves - one incorporates the primary lithium battery bank, another houses two custom slimline fresh water tanks.

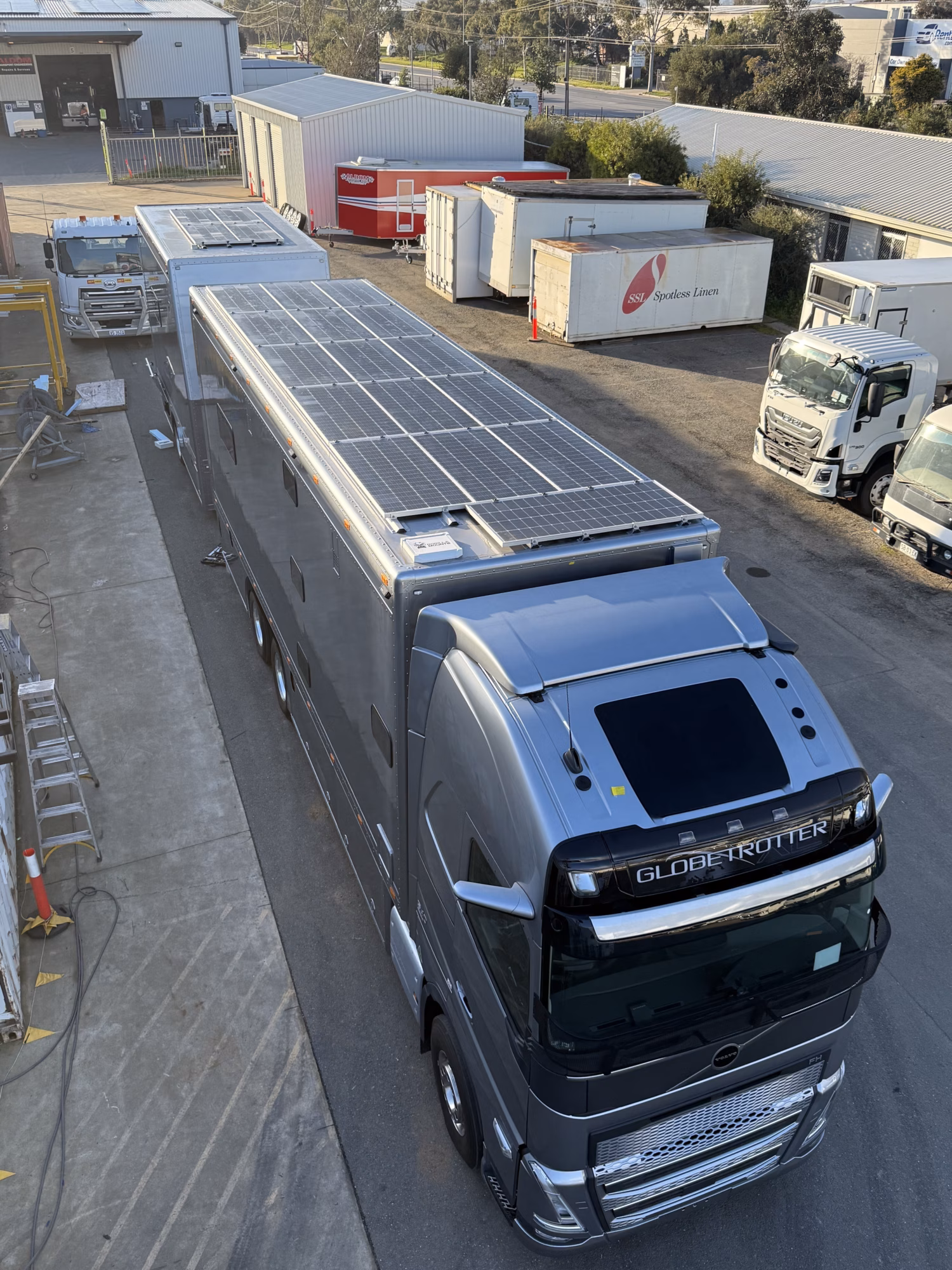

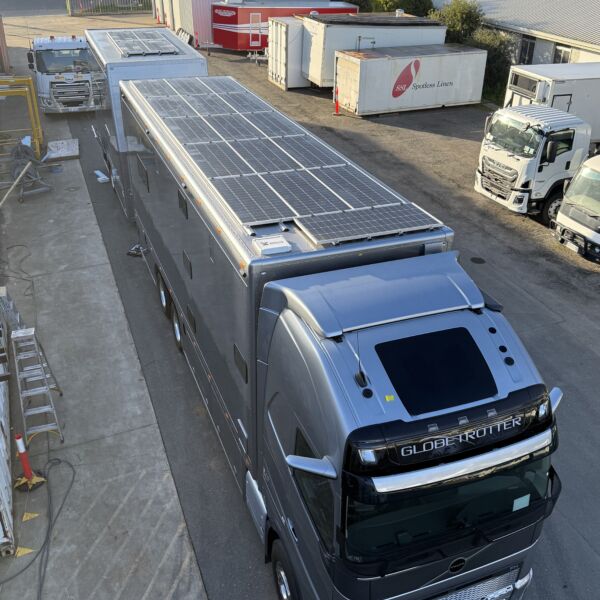

Conventional rooftop air conditioning would have consumed valuable roof space and compromised the extensive solar installation, so ALDOM integrated the air conditioning system into the lower cabinetry instead - freeing the roof for one of the combination's most impressive features, its extensive solar arrays. Extensive roof-mounted solar generation, lithium battery storage and intelligent power management now run everything across the truck and trailer, reducing reliance on a conventional generator.
Designed. Engineered. Built. Finished.
The Swinglehurst project brought together almost every part of ALDOM's in-house capability: Design & Engineering, Fabrication & Body Building, Hydraulics, Auto Electrical, Fit-Out, Paint & Finish, Compliance and Documentation.

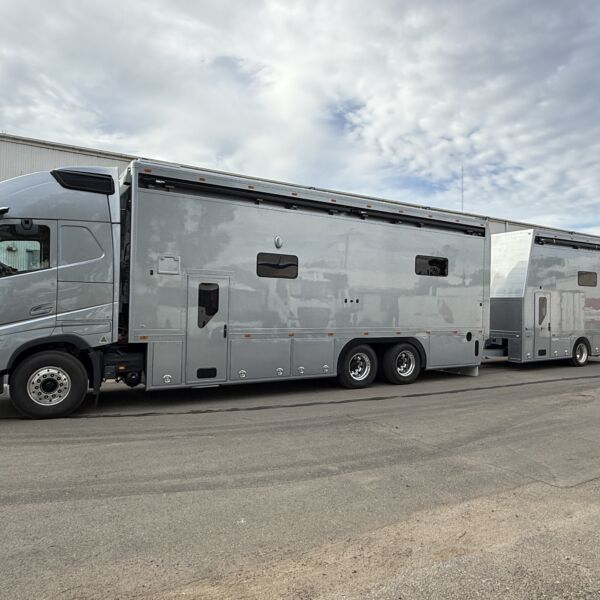

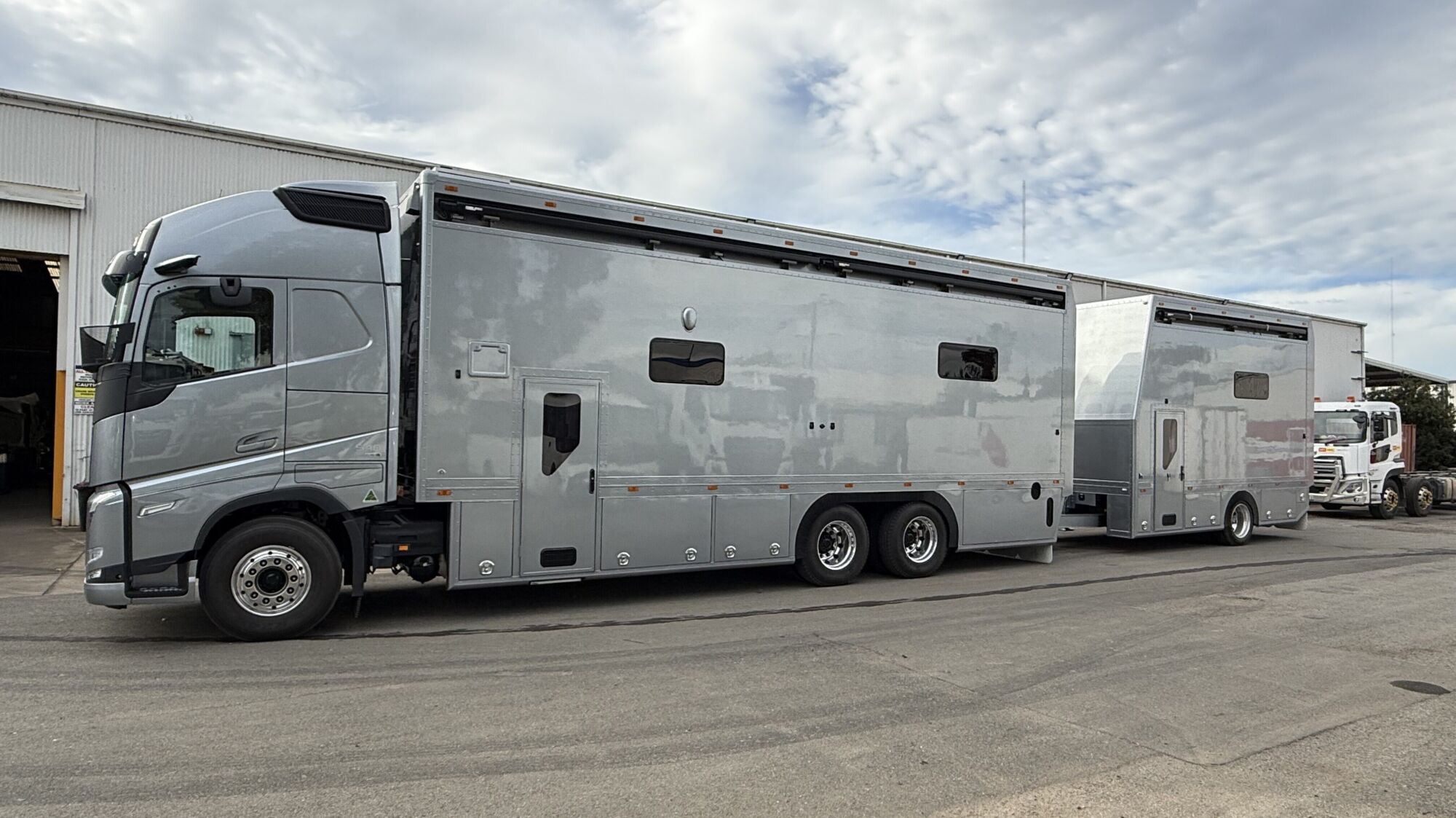

A premium exterior finish completed in Metallic Iced Mercury Grey, complemented by dark anti-slip cargo flooring and marine-carpeted storage areas. ALDOM's engineering team also managed the relevant South Australian compliance requirements and secured Vehicle Type Approval through the Federal Government's ROVER system for the trailer.

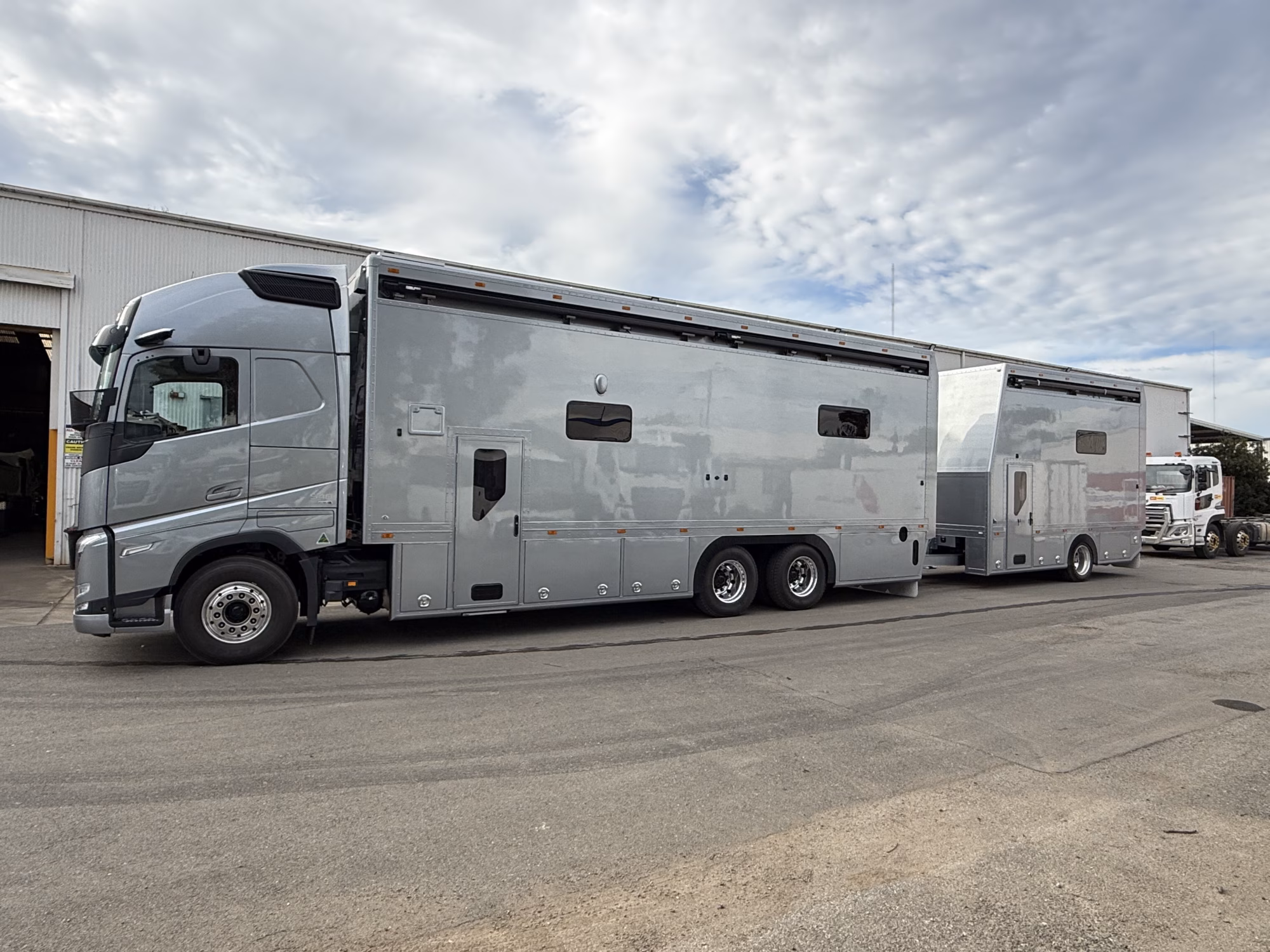

Four sketches became this
From four hand-drawn concepts in January 2025 to final interstate delivery in July 2026, the Swinglehurst Motorsport project demonstrates what can happen when an ambitious idea is backed by genuine engineering and manufacturing capability.
What began as a series of pencil lines on paper became a fully engineered, highly technical and visually striking motorsport transporter ready to support Swinglehurst Motorsport wherever the next race takes them.
